How to Replace a Claw Crane Motor: A Step-by-Step Guide

If your claw crane machine is running sluggishly, making unusual noises, or the claw isn't moving at all, the motor may need to be replaced. This guide walks you through the process of replacing a claw crane motor safely and efficiently.

What You'll Need

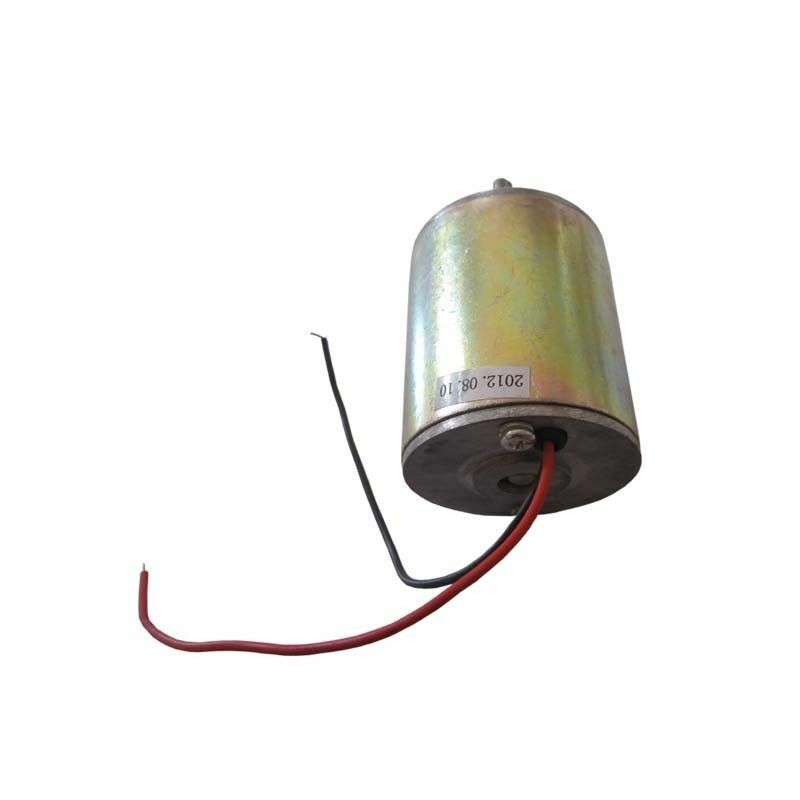

• Replacement 48V claw crane motor
• Screwdrivers (Phillips and flathead)
• Wire stripper and crimping tool
• Multimeter
• Zip ties
• Work gloves

Step 1: Safety First — Power Off the Machine

Before touching any internal components, unplug the machine from the power source. Claw crane machines operate at 48V DC, and working on live wiring is dangerous.

Step 2: Access the Motor Compartment

1. Remove the back panel or side panel of the machine (usually 4–6 screws)
2. Locate the motor — it is typically mounted on the claw carriage assembly at the top of the machine
3. Take a photo of the wiring before disconnecting anything — this will help you reconnect correctly

Step 3: Disconnect the Old Motor

1. Label each wire with tape before removing (positive/negative)
2. Disconnect the wiring harness or cut the wires leaving enough length to reconnect
3. Remove the mounting bolts (usually 2–4 bolts) holding the motor in place
4. Slide the old motor out carefully

Step 4: Install the New Motor

1. Confirm the replacement motor is 48V DC and matches the original specifications
2. Mount the new motor in the same position and secure with bolts
3. Reconnect the wiring — match polarity carefully (reverse polarity can damage the motor instantly)
4. Use crimping connectors or solder for a secure connection — avoid loose wire twists

Step 5: Test Before Closing Up

1. Plug the machine back in
2. Use a multimeter to verify voltage at the motor terminals (should read ~48V when activated)
3. Run the claw through a full cycle — up, down, left, right
4. Listen for smooth operation with no grinding or hesitation

Step 6: Reassemble and Final Check

1. Secure all wiring with zip ties to prevent interference with moving parts
2. Reattach the panel
3. Run 5–10 full claw cycles to confirm everything is working correctly

Common Mistakes to Avoid

• Wrong voltage motor — always confirm 48V before purchasing
• Reversed polarity — double-check positive and negative wires
• Loose connections — poor connections cause intermittent failures
• Skipping the test — always test before closing the machine

When to Replace vs. Repair

Symptom	Likely Cause	Action
Motor doesn't run	Burned winding or blown fuse	Replace motor
Motor runs but weak	Worn brushes	Replace motor
Grinding noise	Bearing failure	Replace motor
Intermittent operation	Loose wiring	Check connections first

Final Thoughts

Replacing a claw crane motor is a straightforward repair that most operators can handle with basic tools. Using the correct 48V replacement motor is critical — an undersized motor will burn out quickly under normal arcade use.
