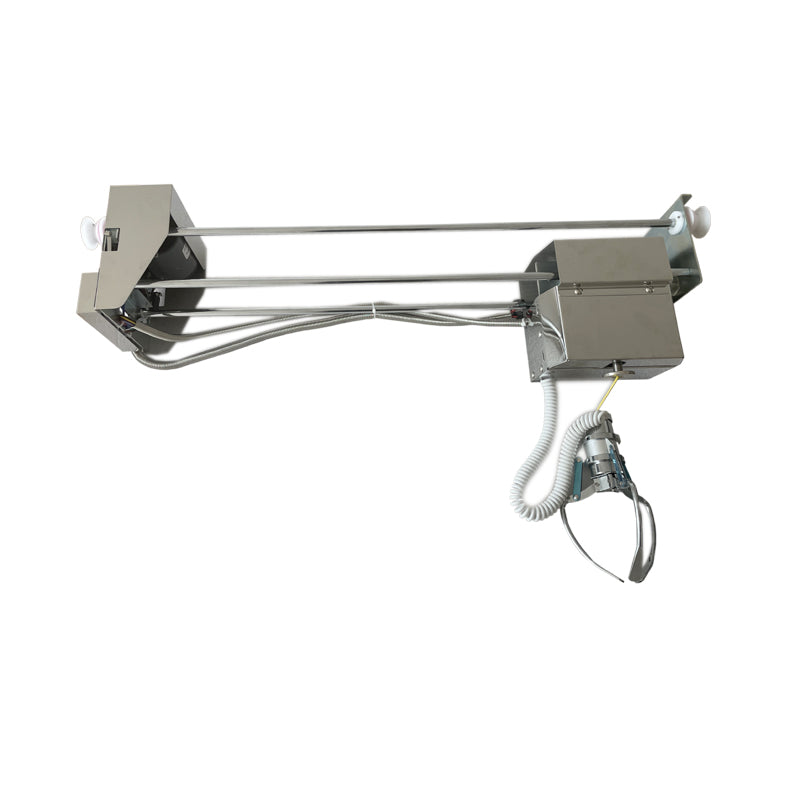

71cm stainless steel claw machine gantry assembly showing X-axis rail, motor housings, cable carrier and claw unit — Hiclawcrane Engineering troubleshooting guide

How to Troubleshoot a Claw Machine Gantry: Start With the Symptom

Start by Describing the Fault

Does the claw fail to move on X (left/right), Y (front/back), or Z (lower/raise)? Does it move by itself after a credit is inserted, respond in only one direction, move unevenly, or fail to return to the correct position? Record the machine and board model, when the symptom occurs, and whether it is repeatable. These are different faults; do not assume they share one cause.

Observe a test cycle without putting hands in the travel path. If the carriage strikes the cabinet or a cable is damaged, stop the test. Before handling connectors or moving mechanical parts, disconnect power to prevent unintended movement, signal shorting, or board damage. The power inlet, switch, fuse, and AC input side of the power supply are mains-voltage areas; electrical service there belongs to a qualified person. Do not use this article as a substitute for the model's service manual.

If It Moves by Itself After a Coin Is Inserted

For a gantry that automatically moves in one direction after a credit is registered, Hiclawcrane's field troubleshooting starts with the corresponding joystick microswitch or direction signal. With power disconnected, isolate the relevant joystick input according to the board's wiring guide, then conduct a controlled test. If disconnecting that input stops the movement, inspect or replace the microswitch and repair its wiring. If the movement persists with the joystick input disconnected, investigate the mainboard input or drive circuit using its test menu or a known-good compatible board.

This is not the same as a gantry that responds to one joystick direction but not the other. For the latter, check the direction signal and wiring, then the model's position sensing and board diagnostics. Avoid declaring a limit switch or mainboard faulty from the symptom alone.

If an Axis Does Not Move

Identify the affected axis. Check for a blocked carriage or prize, damaged belt or other drive part, loose or visibly damaged connector, and any fault indicated by the board's test menu. Inspect the joystick input if the axis fails only during player control. Do not jump straight to motor replacement: the input, wiring, mechanical drive, board output, and motor are different possible fault points.

Gantry motor voltage is not universally 12V or 24V. Some Hiclawcrane systems use 24V motors and others use 48V motors; the 25.7cm mini is a separate compatibility class whose power supply generally provides 5V, 12V, and 24V outputs. In Hiclawcrane machines, 12V commonly serves illuminated joysticks, buttons, and prize or win lights, not as a general X/Y motor rule. Identify the actual motor rating, board, and power-supply output before any electrical diagnosis or replacement. Do not apply voltage directly to a motor based on a generic article. Live electrical measurements and component tests should follow the exact service procedure and be performed by a qualified technician.

If Movement Is Jerky or Inaccurate

With the machine safely powered off, inspect the rail and carriage for debris or binding, belts or drive parts for visible wear and tension problems, and cables for rubbing or loose connections. Follow the assembly's instructions for cleaning and lubrication; not every rail or bearing takes the same oil, and lubrication should not be the default fix for every movement fault. After repairs, verify travel and return position with a controlled test cycle.

How Do I Troubleshoot a Claw Machine That Won’t Return to Its Home Position?

First identify what “won’t return home” means: the return movement never starts, the carriage stops short, it reaches the expected position but keeps moving, or it stops at the wrong location. Check the affected axis and the stage of the cycle, then inspect the travel path and drive mechanism before investigating the model-specific position input, its wiring and the mainboard's diagnostics. A return fault alone does not prove that a motor, home switch or mainboard needs replacement.

  1. Confirm the expected behavior: identify the machine and mainboard version and consult their service instructions for the actual home location and return sequence. Record whether the fault occurs at startup, after a game or during a documented service test, and note any displayed error.
  2. Check the path and mechanism with power off: inspect for obstructing prizes, a snagged cable, binding carriage, damaged drive parts or loose connections. Do not force the carriage or assume every drive assembly can be moved by hand.
  3. Observe the failure stage: if return movement does not start, use the board's documented status and axis tests where available. If it stops short, investigate the obstruction, drive condition and reported position state. If it reaches the expected location but continues moving, stop the test before a collision and inspect the model's position-detection arrangement.
  4. Check position detection and wiring: identify the actual switch or sensor and its mounting, actuator and connector. Compare its behavior with the expected state in the model's wiring guide or diagnostic display. Home location, sensor type, contact behavior and startup sequence vary; do not assume every switch is normally open or every machine homes against a limit switch.
  5. Use model-specific board diagnostics: follow the documented input, drive or calibration procedure to separate a position-input problem from a movement or board-control problem. Do not bypass a home sensor, bridge unknown terminals, apply an assumed motor voltage or change calibration blindly.
  6. Verify the repair: once the identified fault is corrected, conduct controlled cycles and confirm the carriage returns and stops at the documented position without collision or cable strain. Keep hands clear of movement and stop if the fault persists.

For Hiclawcrane support, provide the machine and board model, photos of the relevant position sensor or switch and connections, the error message if any, and a video showing the full cycle and where return movement fails. Keep the 25.7cm Mini separate from larger-system voltage and compatibility assumptions.

If Z Movement Is Wrong

Observe whether the claw fails to lower, lowers too far, fails to lift, or moves unevenly. Check for a tangled or damaged cable or string, obstruction, loose connector, and the model's sensor or travel settings. Verify the mechanical and electrical compatibility of any replacement. Do not increase drop depth blindly: an incorrect setting can cause the claw to hit the prize floor or other components.

When to Replace a Part

Replace a part when inspection and model-specific tests identify it as the cause and the replacement is compatible. Match voltage, connector and pinout, mounting dimensions, drive interface, and board version for a motor; match the actual contact design and mounting for a switch. A broken belt or damaged wiring needs attention before further operation. Base inspection intervals on usage, observed wear, and the model's service instructions; there is no universal requirement to replace belts every two or three years regardless of condition.

Frequently Asked Questions

How do I troubleshoot a claw machine that won’t return to its home position?

Record whether return movement never starts, stops short, continues past home or ends at the wrong position. Check the travel path and drive parts with power off, then follow the exact model's instructions for position sensing, wiring and board diagnostics. Stop if the carriage collides or overtravels. Do not assume a universal home location, switch contact state or motor voltage, and do not bypass the sensor.

How can I tell whether a position switch is faulty?

First confirm the switch type and wiring for the specific model. With power off, a technician can test its behavior using the model's service procedure and compare it with the expected contact state. Do not assume every switch is normally open or diagnose the board from one reading alone.

What should I check if the gantry suddenly stops?

Record which axis stopped and when. Look for an obstruction, damaged drive part, loose connector, or a board-reported error; then follow the model-specific test procedure. A sudden stop does not prove a fuse, motor, or mainboard has failed.

Can I operate with a faulty travel or home sensor?

Do not continue normal operation when a travel or home sensor is confirmed faulty. A machine can move beyond its intended range or return incorrectly. Verify and repair the fault before putting it back into service.

How often should I inspect the gantry?

Set inspection frequency according to usage, observed wear, environment, and the manufacturer's instructions. Check for binding, damaged belts or cables, loose connectors, and abnormal movement; do not use a fixed replacement schedule for every model.
