Whether you're building a claw machine from a DIY kit or repairing an existing machine, this checklist helps you plan the complete build. It is not the packing list for every Hiclawcrane kit: parts vary by edition and cabinet design. Check the selected product listing, packing list and wiring diagram before ordering or fitting any replacement.
DIY kit versus complete machine: a Hiclawcrane DIY kit supplies the components listed for its edition, but it does not include a finished cabinet or the cabinet tracks and guide rails that must be matched to that enclosure. Panels, prize chute, cash storage and other cabinet fittings should be planned separately unless the exact listing says otherwise. A gantry component is not a substitute for cabinet-matched guide rails.
Structural Components — Plan With the Cabinet
- Cabinet frame or shell in the material and dimensions you choose
- Transparent display panels and service access panels sized for that cabinet
- Prize chute and delivery door sized for the intended prizes
- Base, feet or supports appropriate for the machine's weight and site
- Cabinet-specific screws, brackets and mounting hardware
These are full-machine build requirements, not a promise that cabinet panels or fittings arrive in a DIY kit.
Movement System
- X- and Y-axis gantry components, motors or drives specified by the selected version
- Cabinet tracks or guide rails matched to the enclosure and gantry, sourced separately from the DIY kit
- Claw lowering/lifting mechanism and its motor or drive as specified for that model
- Mounting brackets and drive belts, wheels, pulleys or other transmission parts used by the actual assembly
- Limit switches or position inputs fitted on that version
Do not assume every model uses the same rail dimensions, end-stop positions or drive type. The 25.7cm Mini is a separate compatibility category from larger kits.

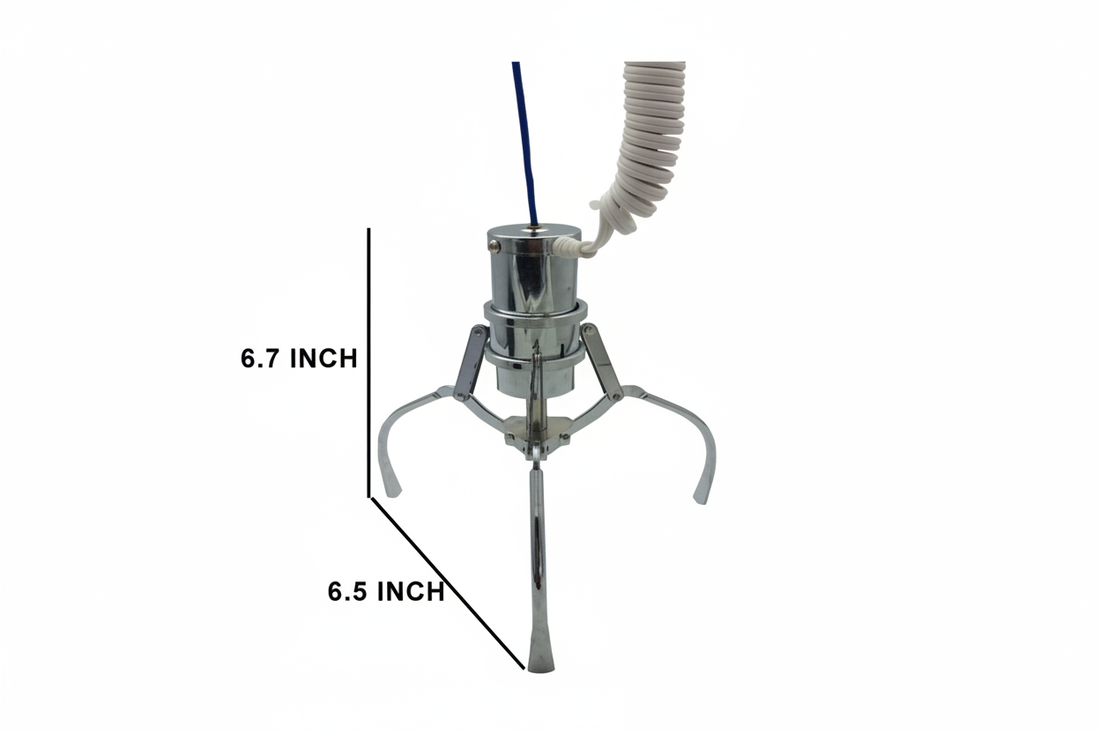

Claw Mechanism
- Claw head and fingers in a size and type suitable for the intended prizes
- Claw cable/string, lift path and related guides where specified
- Claw closing drive, which may differ by model; check the board and part rating
- Model-specific mounts, fasteners and adjustments, if provided
Not every claw has an adjustment spring or the same number of fingers. Check replacement fit, voltage and connector before buying from arcade spare parts.
Control System
- Main control board or PCB compatible with the gantry and power supply; compare kit editions for their actual board types
- Joystick and player buttons in the configuration specified for the build
- Operator controls or service access as documented by the board
- Wiring harness with the correct connectors and pinouts
- Any included prize detection sensor, which helps the board count dispensed prizes; inclusion depends on the edition
The mainboard records game inputs separately from the prize sensor's detection signal. Verify each connection against the board diagram, not wire color alone.
Payment System
- Coin or token acceptor compatible with the board input and local currency, if used
- Coin/cash storage and access designed into the cabinet
- Bill acceptor if required by the edition or added later; a Hiclawcrane DIY kit can use one when the cabinet has installation and banknote-storage space
- Any payment counters or additional modules only where supported by the selected board
Payment devices and their pack quantities vary. A multipack listing does not mean one device from inside that pack is available individually. Check the exact part before ordering.
Electrical Components
- Power supply matched to the selected kit's board, gantry motor(s) and accessories, with sufficient rated capacity and the correct input for the installation site
- Protection, power switch and cabinet wiring appropriate to the actual design and local requirements
- Lights and any controller fitted in the selected edition
- Specified connectors, cable protection and strain relief for moving parts
Do not assume a 350W supply or AC 100–240V input applies to every machine. Hiclawcrane boards generally use 5V DC, 12V commonly serves illuminated controls or prize lights, and some gantry motors use 24V or 48V; follow the exact component ratings. Mains-side wiring should be handled by someone qualified.
Display & Audio
- Classic numeric display or LCD display according to the selected board edition; not every build includes both
- Speaker and audio connection if supplied for that version
- Optional cabinet marquee or header panel where your cabinet design calls for it
Do not add an amplifier board or prize counter display to a parts order without checking whether the board and build require it.
Consumables & Spare Parts to Stock
- Fuses of the specified type and rating for the fitted circuit, if applicable
- Claw fingers or full compatible claw assembly when wear or damage justifies replacement
- Belts, switches, joystick parts and buttons matched to the specific machine, if used
- Payment device or compatible repair parts as appropriate to your installed equipment
Stock levels depend on the number of machines, failure history and access to replacements. Check product packaging and whether parts are sold singly or in packs; do not assume items inside a pack can be purchased separately.
Tools for Assembly or Repair
- Screwdrivers and hex keys matching the actual cabinet and supplied fasteners
- Crimping, stripping or other tools only if the documented build requires wiring changes
- Multimeter used with the correct test points and component ratings
- Cleaning and cable-routing supplies suitable for the components
A soldering iron or compressed air is not required for every job. Follow the exact instructions and use qualified help for unfamiliar mains-side work.
Frequently Asked Questions
Where can I buy claw machine parts?
Browse Hiclawcrane's arcade spare parts and check the exact part's fit, rating and pack quantity before ordering.
What spare parts should I keep on hand?
Start with the actual installed parts and your machines' wear or fault history. Frequently used controls, fuses of the correct rating, and compatible drive or claw components may be useful, but there is no one-size-fits-all replacement list.
Can I use JAMMA-standard parts in a claw machine?
Do not assume a JAMMA video-arcade harness or board fits a claw-machine control system. Check the connector pinout, electrical ratings and board compatibility for the exact product. See the JAMMA Wiring & PCB Guide for the distinction.
How do I know which power supply to buy?
Match the board and motor voltage and current requirements, accessory loads, connector pinout and site input rating to the specific machine. Do not use 350W or AC 100–240V as a universal specification.
Do claw machine parts from different manufacturers fit together?
Not necessarily. Match dimensions, voltage, current, connectors, pinout and board functions, not just brand or visual appearance. Use the Arcade Spare Parts Compatibility Guide as a starting point and confirm the actual model.
How often should I inspect and replace parts?
Inspect based on use, visible wear and symptoms. Replace a belt, limit switch or button when inspection or testing shows a fault; there is no verified universal six-to-twelve-month or one-to-two-year replacement interval.
