Building a DIY claw crane machine involves the selected kit and a separately planned cabinet. When a function fails after assembly, start with the symptom and the wiring or mounting diagram for that exact edition. The cabinet and cabinet-matched tracks or guide rails are not included in the DIY kit; their installation can affect gantry travel. The checks below are starting points, not universal instructions to rewire a motor or replace a part.
1. The Claw Doesn't Move Smoothly — Gantry Binding or Sticking
Problem: X or Y travel is uneven, jerks or stops partway.
Possible causes: A cabinet rail or mounting point is out of alignment, a cable or prize obstructs travel, a belt or drive component is binding, or a motor/driver or limit input is involved. Do not assume misaligned rails are always the cause.
First checks: With power disconnected, inspect the full travel path and cable routing. Check the separately sourced cabinet rails, mounting, fasteners and gantry drive against your cabinet and kit drawings. If an axis binds mechanically, correct that identified issue before testing under power. Do not loosen every mounting screw and use the gantry to 'self-align' unless the specific assembly instructions call for it.

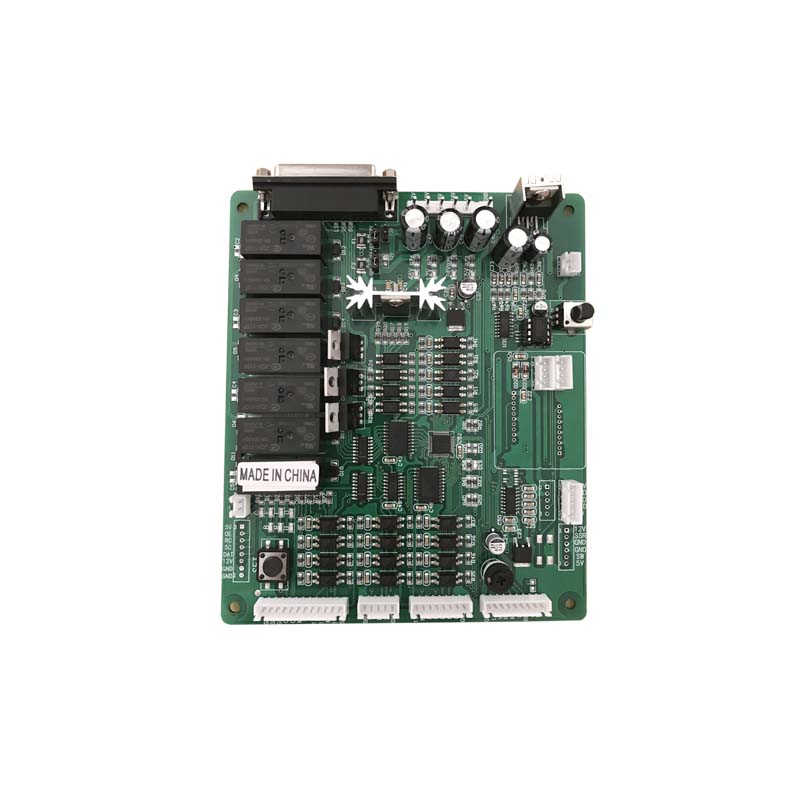

2. Wiring Confusion — Which Cable Goes Where?
Problem: Similar connectors make it difficult to identify board, motor, control and payment connections.
Possible cause: The harness and board revision may differ from a generic illustration, or labels may be hard to read.
First checks: With power off, identify the kit edition and board revision, then match each branch to its diagram label, pinout and component rating. Connector shape and pin count alone do not prove compatibility, and colors are not universal. Do not force or rotate a plug to make it fit. Label confirmed branches and send clear photos of both ends and the board markings to support if something remains ambiguous.
3. Coin Acceptor Not Registering Coins
Problem: A coin is accepted or inserted but no credit appears.
Possible causes: The coin is rejected, the device lacks the correct supply, its signal/return connection is loose, or its output and board coin setting do not match.
First checks: Observe whether the coin is accepted or returned, then check the exact acceptor's power and output specification, harness connection and board input setting. If training or calibration is required, follow that device's procedure using the intended coins or tokens; do not assume every model uses a hold-button-and-sample-coin sequence.
4. Claw Drops But Doesn't Close — Or Closes Too Weakly
Problem: The claw descends but fails to close or cannot reliably grip the intended prize.
Possible causes: A loose claw-head connector, incorrect board setting, unsuitable prize, worn mechanism, or a fault in the specific claw drive circuit. The closing mechanism varies by model.
First checks: Check the selected kit's claw assembly, connector and board's grab/hold settings. Verify the appropriate output using the model's instructions and test with the intended prize. Do not swap motor wires or start at a universal 50% strength setting. If a board documents a coil, fuse or voltage adjustment, use that model's labeled procedure rather than assuming every kit has CW or VR2 controls.
5. Machine Powers On But Display Shows Nothing
Problem: Other parts appear powered but the numeric or LCD display is blank.
Possible causes: Display power, connector, ribbon cable where fitted, mainboard startup, or the display itself.
First checks: Identify whether this kit uses a Classic numeric display or an LCD. Disconnect power and check its documented plug or ribbon orientation and seating, then check the specified display supply and board status. Do not assume every display uses a ribbon cable.
6. Joystick Direction Is Wrong or Reversed
Problem: Joystick direction does not match gantry movement.
Possible causes: Joystick input mapping, cabinet orientation, board configuration, axis harness or motor/driver wiring.
First checks: Compare the board's input indications, joystick pinout and axis labels with the exact wiring diagram. Note whether one axis or both are affected. Do not rotate a keyed connector 180 degrees or swap signal wires as a general fix; that can put a supply on the wrong pin.
7. LED Lights Flicker or Don't Turn On
Problem: Lights flicker or stay off.
Possible causes: Loose plug, damaged strip, controller setting, supply issue or wire strain during movement.
First checks: Check the installed light's rated voltage and controller, inspect connectors with power off, and measure only at points identified in the kit diagram. Some illuminated controls and prize lights use 12V, but do not assume every LED strip or edition has the same supply.
8. Machine Works But Makes No Sound
Problem: Gameplay functions but audio is missing.
Possible causes: Muted/low board volume, loose speaker connection, wrong speaker specification or audio output fault.
First checks: Check the applicable board volume setting, speaker and connector against its diagram. If the speaker or output is suspect, test with a specified compatible part. Do not reverse speaker wires as a default troubleshooting step.
9. The Claw Doesn't Return to Its Home Position
Problem: Travel stops in the wrong place or homing fails after play or startup.
Possible causes: An obstruction, limit-switch input, cable, board setting, motor drive or mechanical issue.
First checks: Find the home position and limit inputs in the actual kit instructions; do not assume every model homes to the same corner or uses rear and left switches. With power disconnected, inspect the switch actuation and connector; use the board's input test where available. Check movement clearance before another powered test.
10. Power Supply Makes a Buzzing Noise
Problem: An unusual sound is heard from the supply or cabinet.
Possible causes: Vibration, a loose mounting or connection, overload, or an internal power-supply fault. Sound alone cannot establish that a switching supply is operating normally.
First checks: Stop using the machine if there is a new or loud buzz, heat, burning smell or unstable operation. Disconnect power and inspect accessible external mounting and DC connectors without opening the supply. For mains-side or internal supply diagnosis, use qualified service and the exact supply rating; do not assume that a hum is normal or test an unknown supply with exposed live wiring.
Frequently Asked Questions
What should I check first when a DIY claw machine has an assembly fault?
Identify the exact symptom and kit edition. Check the relevant cabinet clearance, connectors, board indications and component ratings against that edition's diagram before changing wiring or settings.
Why is my DIY claw machine claw not closing properly?
Check the claw assembly and connector, the selected board's documented grab and hold settings, and the prize used for testing. A fuse or adjustment named on one board does not apply to every kit; do not swap wires as a default fix.
How do I check a gantry that does not return home?
Find the model's documented home position, inspect travel clearance and check its limit-input state and connectors. Do not assume a rear/left switch pair or a fixed homing direction on every model.
What tools do I need to troubleshoot a DIY kit?
The tools depend on the enclosure and fault. A screwdriver and the kit's diagrams are useful for accessible mechanical and connector checks; use a suitable multimeter only with known test points and ratings. Cabinet and matching guide rails must be provided separately.
Still Stuck? We're Here to Help
If the issue remains, contact Hiclawcrane with your kit edition, board model, the symptom and clear photos or a short video. This makes it easier to identify the relevant diagram and next check; response times and replacement parts depend on the case. Check replacement compatibility and pack quantities in arcade spare parts.
