What Does a Limit Switch Do?
A limit switch changes its electrical contact state when a moving part reaches its actuator. A compatible control board can use that signal to identify a position or travel boundary. Hiclawcrane's X, Y, and Z gantry systems have limit switches, but their number, placement, contact type, and role in the operating sequence must be checked for the specific assembly. Do not assume every machine has a switch at both ends of each rail or uses the same startup movement.
Where Are the Switches?

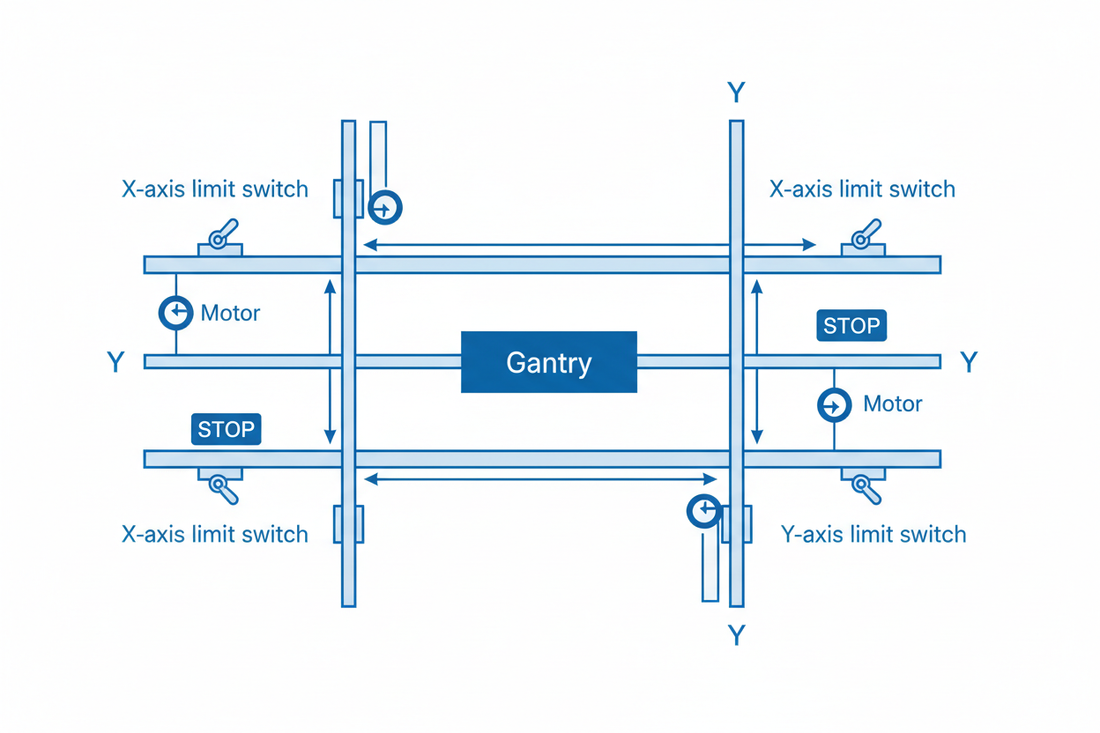

Look for the switches and actuators shown in the actual kit's wiring diagram and service guide. Their positions are chosen for that assembly's travel and return behavior. X describes left-right movement, Y front-back movement, and Z lowering and raising; those axis names do not specify which physical end is home. A position signal helps the board control movement, but a switch alone does not guarantee that the machine cannot over-travel if wiring, drive circuitry, or setup is faulty. Stop a test if the carriage is striking the cabinet.
Normally Open and Normally Closed
A normally open (NO) contact is open at rest and closes when actuated; a normally closed (NC) contact is closed at rest and opens when actuated. Some micro switches have both terminals. The board's input configuration and wiring determine which contact is used. A broken wire does not produce the same diagnostic behavior in every circuit, so do not infer the board's protection design solely from an NC or NO label.
Homing and Return Behavior
Some boards use switch signals during a startup or return-to-position sequence. Others may use a different sequence or additional sensing. The direction, order, and menu settings depend on the board and gantry. Observe the actual machine's behavior and use its manual; do not follow a universal “X left, then Y front, then Z up” routine or move a switch bracket to adjust travel without the specified service procedure.
Match the Check to the Symptom
- Fails to reach its return position: check for an obstruction, loose connector, damaged wiring, displaced actuator, and the relevant switch signal using the model's test procedure.
- Moves by itself in one direction after a credit: Hiclawcrane's field check starts with the corresponding joystick microswitch or direction signal. Isolate the joystick input with power off according to the board diagram, then conduct a controlled test. If the movement stops, inspect that input and wiring; if it persists, investigate the board input or drive circuit.
- Responds to one joystick direction but not the other: check the relevant direction signal and wiring before testing the applicable position switch and board output. This is different from movement that starts by itself.
- Position drifts during play: look at drive parts, alignment, sensor signals, wiring, and board diagnostics. Do not rule a switch in or out based on this symptom alone.
Testing and Replacing a Switch
Disconnect power before handling a switch or connector to avoid unintended movement, shorting, or damage to the board. A technician should identify the correct terminals and expected contact behavior from the exact diagram before using a meter. If the contact does not change as specified, or the actuator and harness are damaged, investigate the part and wiring before replacement. Match the replacement's contact arrangement, actuator, electrical rating, connector and pinout, mounting, and travel position to the original system; do not assume a generic micro switch or a 5A/12V rating fits every Hiclawcrane kit.
Frequently Asked Questions
Can I run the machine with a confirmed faulty position switch?
Do not continue normal operation when a switch required for that machine's travel or return function has failed. Repair and verify the fault first; the board may otherwise lose an important position signal.
How do I adjust an axis's return position?
Use the instructions for the exact board and gantry. Confirm the sensor, mounting and wiring before changing a parameter or bracket position. Do not relocate a switch based on a generic distance or direction rule.
Could a position switch contribute to drifting during play?
Possibly, depending on how that machine uses position signals. Also check belts or other drive parts, alignment, wiring, and board diagnostics before assigning a cause.
What switch type do Hiclawcrane kits use?
The switch model and rating should be identified from the exact kit or replacement part. Do not assume every edition uses a roller-lever switch rated 5A at 12V DC; confirm actuator, contacts, rating, connector and mounting before ordering.
