DIY Claw Crane Machine Kit with 71cm Gantry — Standard Set
Turn your empty cabinet into a fully operational claw crane machine with this all-in-one 71cm DIY kit. Designed for arcade operators, entrepreneurs, and distributors, every component is factory-tested and ready to assemble. No sourcing individual parts — everything ships together from Hiclawcrane's Guangzhou production facility.
Complete Kit — What's Included

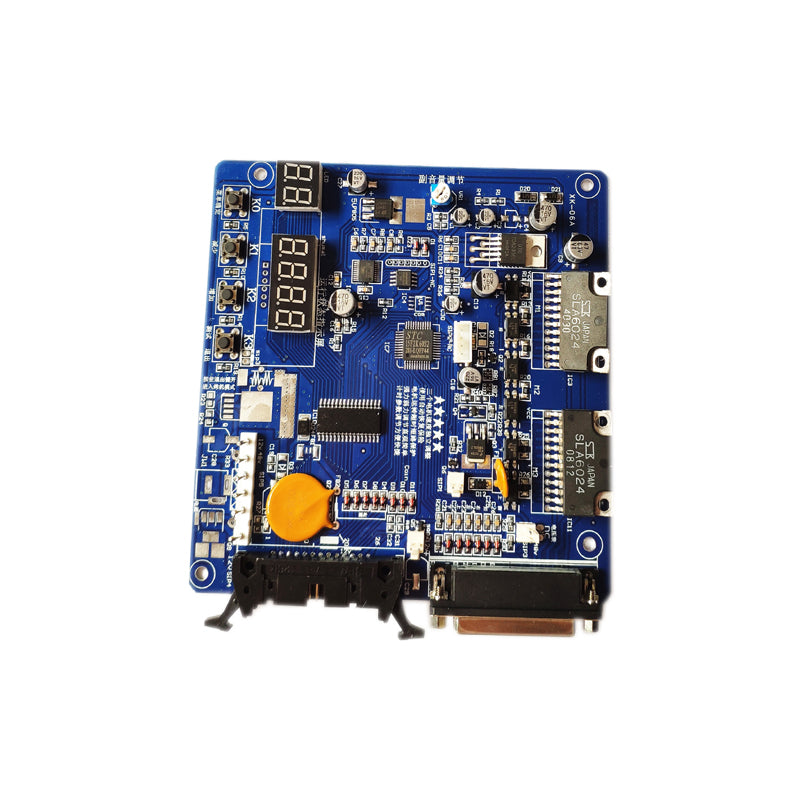

- Main Board with Digital Display × 1 — Programmable control board with built-in digital credit display. Adjust claw strength, drop time, play time, and coin value directly from the board.
- Wire Harness for Main Board × 1 — Pre-labeled, color-coded wiring harness for straightforward assembly even for first-time builders.
- 71cm Gantry Assembly × 1 — Chrome steel X/Y axis rail system with claw head and coil rope. 71cm span for standard cabinet footprints.
- Assembly Instruction × 1 (Electronic File) — Step-by-step wiring diagram and assembly guide.
- Joystick with LED × 1 — Heavy-duty 4-way arcade joystick with LED illumination.
- Power Supply × 1 — Enclosed metal power supply. AC 100–240V worldwide compatible.
- Speaker × 1 — Built-in audio speaker for game sound effects and attract music.
- Cam Locks × 3 — Standard arcade cam locks with keys for cabinet doors and service panels.
- Push Button × 1 — Large illuminated player action button.
- Coin Acceptor × 2 — Dual coin acceptors for multi-denomination support with anti-fishing mechanism.
- Voltmeter × 1 — Analog voltage meter for power diagnostics.
- Coin Meter × 2 — Mechanical coin counters for revenue tracking per coin slot.
- LED Running Light × 1 Set — Cabinet interior LED strip lighting.
- L-Type PCB Feet × 4 — Protective standoffs to elevate and protect the main board.
- Screws (Assorted) — Full mounting hardware set included.
What Is NOT Included
- Cabinet tracks / guide rails — not included because cabinet dimensions vary by builder
- Cabinet / enclosure (wood or acrylic panels)
- Prize chute and prize door assembly
- Acrylic front panels or glass
- Prizes / plush toys
- Coin box / cash box
- Prize sensor
Who Is This For?
Best for:
- Arcade operators building or upgrading commercial machines
- DIY builders constructing a custom claw machine cabinet
- Distributors sourcing kits for resale or integration
- Repair shops replacing a complete internal mechanism
- Game room businesses setting up new prize attractions
What You Need to Build the Machine
This kit provides all electrical and mechanical internals. To complete a fully enclosed claw machine, you will also need:
- Cabinet frame (wood, MDF, or metal — customer supplied or custom built)
- Cabinet tracks / guide rails — sized to match your cabinet dimensions
- Acrylic or glass panels for front and sides
- Prize chute and prize door
- Coin box / cash collection tray
- Basic tools: screwdrivers, wire cutters, drill
Assembly Information
| Difficulty | ★★☆☆☆ — Beginner friendly. No soldering required. Pre-labeled wiring. |
|---|---|
| Estimated Assembly Time | 2–4 hours (mechanical + wiring) |
Compatibility
| Compatible Cabinet Size | 71cm internal width or larger |
|---|---|
| Payment Systems | Coin (dual acceptor included). Token compatible. Bill acceptor: not included, but main board supports add-on. |
| Voltage | AC 100–240V — worldwide compatible |
Key Features
- True All-in-One Kit: 15 component categories — nothing missing, nothing to source separately
- Commercial Grade Components: Every part rated for continuous operation in arcades, malls, and entertainment venues
- Worldwide Power Compatibility: AC 100–240V power supply
- Beginner Friendly: Pre-labeled wiring harness and electronic assembly guide
- Factory Direct Pricing: Sourced directly from Hiclawcrane's Guangzhou facility
Compare Other Kit Versions
- 71cm Kit — Custom Music Edition — with custom audio board
- 71cm Kit — Classic Mainboard Edition — field-proven 10+ year design
- 71cm Kit — Bill Acceptor Edition — with bill acceptor
- 71cm Kit — LCD Mainboard Edition — LCD display version with prize sensor
- 71cm Stainless Steel Kit — Complete Set — premium stainless steel gantry
- 53cm Stainless Steel Kit — Standard Set — compact 53cm stainless steel gantry
- Mini Kit — 25.7cm Gantry — compact countertop version
Browse the full DIY Claw Crane Machine Kit collection.
Enter your setup costs, plays per day, and payout rate — see your estimated monthly profit and break-even time instantly.
Try the Free Calculator →New to Building a Claw Machine?
Visit our Knowledge Center for assembly guides, wiring tips, and claw strength setup. Learn key terms in our Arcade Glossary.
Technical Specifications
| Specification | Details |
|---|---|
| Gantry Size | 71cm |
| Gantry Material | Chrome Steel |
| Mainboard | Digital Control Board |
| Payment | Coin |
| Voltage | AC 100–240V |
| Claw | 3-Finger |
| Prize Sensor | Not Included |
| Recommended Prize | Plush / Toys |
| Kit Weight | 11kg |
| MOQ | 1 |
| OEM | Available |
| Manufacturer | Hiclawcrane |
| Origin | Guangzhou, China |
| SKU | HCC-DIY-71CM-001 |
For bulk orders (5+ kits), contact our wholesale team for volume pricing and OEM options.
Frequently Asked Questions
What components are included in this kit?
15 component categories: main board with digital display, wire harness, 71cm gantry assembly, electronic instruction file, LED joystick, power supply, speaker, 3 cam locks, push button, 2 coin acceptors, voltmeter, 2 coin meters, LED running light set, 4 PCB feet, and assorted screws.
Is this kit suitable for first-time builders?
Yes. The pre-labeled wiring harness and step-by-step electronic guide make this accessible to first-time builders. Our after-sales support team is available to assist with any technical questions.
Can I upgrade this kit with a bill acceptor later?
Yes. The main board supports bill acceptor integration. You can add one separately at any time. For a kit that already includes a bill acceptor, see the 71cm Bill Acceptor Edition.
What is the MOQ and do you offer bulk pricing?
MOQ is 1 unit. Bulk pricing is available for orders of 5 or more kits. Contact us for wholesale pricing and OEM options.
Do you ship internationally?
Yes. We ship worldwide via sea freight, air freight, and express courier (DHL/FedEx). Full export documentation is provided for all international orders.
