Direct Answer

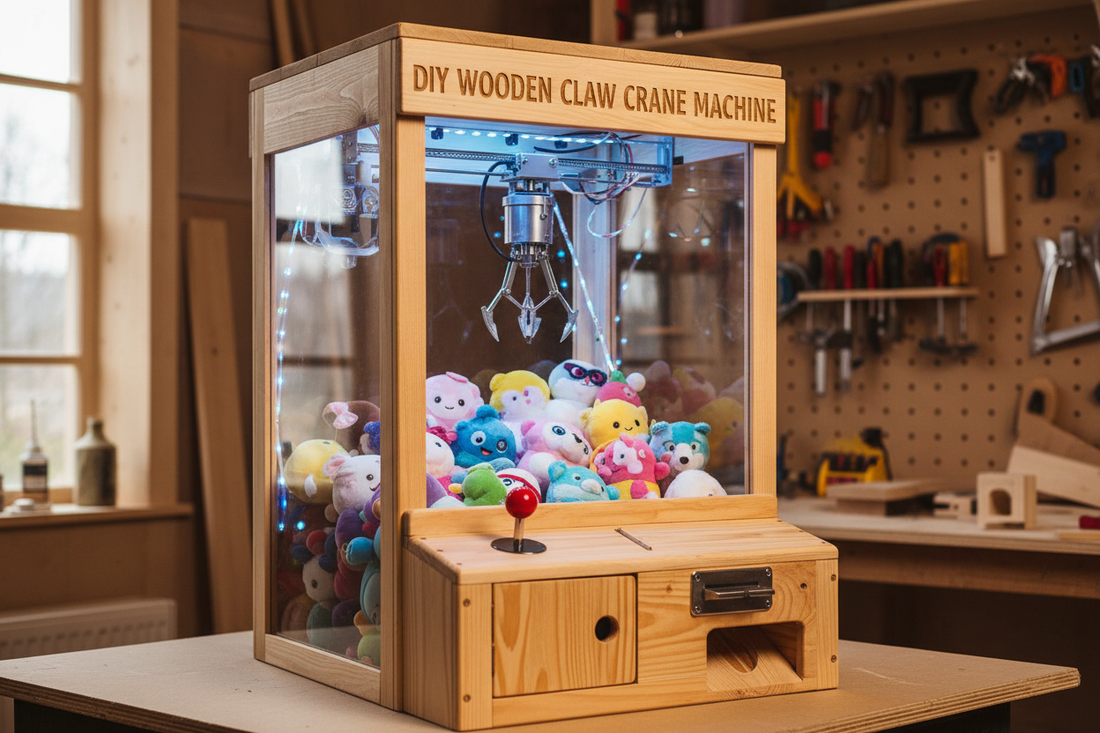

You can build a compact claw machine for a home game room around a 25.7cm Mini Starter Set, but 25.7cm is the gantry span, not the finished cabinet footprint. Whether the completed machine fits safely on a table or countertop depends on your cabinet dimensions, weight, support surface, prize chute and access. You supply a suitable enclosure and cabinet-matched tracks or guide rails separately. The kit's current listed price was $429 when checked for this guide; shipping and the rest of the build are additional costs.
Why Build Your Own Compact Claw Machine?
A custom build can fit your room and prize plan, and gives hobbyists a chance to learn how the mechanism works. First decide where the completed machine will stand, how it will be supported and how you will reach the controls, prize door and service panels. A small gantry does not automatically produce a small or light finished machine, and the Mini is its own component and power-compatibility class.
Choosing the Right Kit Size
Compare gantry spans with the usable internal space needed for travel, claw drop, prize field and chute. Cabinet size is determined by the actual mechanical drawings and your enclosure, not a fixed multiplier of gantry width.
| Gantry | Build to consider | Cabinet requirement | Current kit list price example |
|---|---|---|---|
| 25.7cm Mini | Compact custom build | Plan full travel, chute, rails, controls and service access; verify tabletop support | $429 |
| 53cm Standard | Cabinet with room for a 53cm gantry | Measure full internal travel and cabinet-matched rails | $499.99 |
| 71cm Standard | Cabinet with room for a 71cm gantry | Measure full internal travel and cabinet-matched rails | $499.99 |
These are checked product list prices, not delivered or finished-build prices. The 53cm Standard Set has a stainless-steel material description primarily referring to the box-shaped gantry part; the 71cm Standard Set is described as chrome steel. Check each edition's listing for included parts and current price. Neither 53cm nor 71cm automatically requires a floor-standing cabinet; the final design must meet structural and space requirements.
What You Need: Complete Parts List
Kit components: check the selected edition's packing list
- Gantry and claw/lift parts specified for the 25.7cm Mini version
- Mainboard, compatible power supply and documented wiring harness
- Controls, payment or start device, and other accessories only as listed for that version
- Instructions and a diagram for the actual board and harness revision; request the correct diagram if missing
Do not assume the Mini shares larger kits' voltage, board, motor, claw, lighting or prize-sensor configuration. A kit gantry component is not a set of cabinet-matched guide rails.
Cabinet components: source separately
- Wood, metal or suitable engineered enclosure panels and the structural hardware for your design
- Display window or transparent panels, prize chute and retrieval door
- Cabinet tracks or guide rails matched to the enclosure and gantry
- Control and payment mounting points, access panels, wire routing and stable support for the finished weight
Material thickness, fasteners, hinges and adhesive depend on the chosen enclosure and load. Do not copy a generic plywood, acrylic or plastic-bin thickness without checking rigidity and mounting requirements.
Tools to plan for
- Measuring and cutting tools suited to your cabinet material
- Drill, drivers and fasteners suited to the actual design
- Any connector or electrical test tool required by the selected kit's instructions
Budget the whole build
| Item | What to check |
|---|---|
| 25.7cm Mini kit | Current listed price and included parts ($429 when checked) |
| Cabinet, transparent panels and door | Local materials or fabrication quote for your design |
| Cabinet tracks or guide rails | Fit, mounting and delivered cost; not supplied with the kit |
| Prizes, finishing and tools | Actual intended use and what you already own |
| Shipping, taxes or labor | Destination-specific quote and any outside help needed |
There is no reliable all-in total without the enclosure design and delivered costs. DIY kits can be ordered from one; wholesale pricing starts at six kits and customization at twenty. Those thresholds do not apply to spare parts.
Step-by-Step: Building the Cabinet
Start with the actual Mini kit and gantry drawings; do not cut panels to a presumed 35 × 35 × 45cm internal size.
- Measure components and travel: allow clearance for gantry movement, the claw's full drop, wiring loops, intended prizes and the chute.
- Draw the enclosure: choose a stable base, load-bearing structure and accessible front or side panels; confirm the support surface can carry the completed machine if it is tabletop.
- Plan service and payment openings: locate the joystick, any coin/bill device, display and collection door so they do not obstruct the prize path.
- Plan the rails: specify cabinet-matched tracks or guide rails and mounting positions using the exact gantry design before drilling.
- Cut and assemble: prepare your chosen panels, openings and fasteners; check the structure is square, stable and free of sharp edges.
- Fit window, door and finish: use suitable transparent panels, hinges or catches for the actual cabinet, keeping a secure service opening.
Step-by-Step: Installing the Claw Mechanism
- Identify the Mini kit's gantry, lift mechanism, motor/drive parts and mounting points against its own instructions.
- Mount the separately sourced cabinet rails securely and check alignment and full movement clearance.
- Install the gantry and drive parts in the order specified for that version; do not assume every model uses the same belt, lead screw or X/Y rail arrangement.
- Fit the claw head, string/cable or lifting assembly as shown in the Mini kit diagram; do not attach a claw head directly to a motor shaft by assumption.
- With power disconnected, inspect the path for binding or cables that could snag before the powered test.
Step-by-Step: Wiring and Electronics
- Identify the selected Mini board, supply, motor and accessory ratings and its exact wiring diagram before connecting.
- Mount the board and supply in accessible, protected positions with suitable cable routing.
- Connect motor/driver, limit inputs, controls, payment/start device and lighting only where shown on that board's diagram. Check pinout, not just matching wire colors.
- Keep power disconnected while seating connectors and route wires clear of moving parts.
- Confirm the supply input and each output rating; do not assume the board input is 12V DC or that a supply from a larger kit is compatible with Mini.
- Follow the kit's first-power-on check for board status, gantry travel, claw and payment function. Seek qualified help for mains-side work or unknown wiring.
Final Calibration: Getting the Settings Right
Read the selected board's menu before adjusting anything. Where supported, check grab and hold settings, game time, coin or free-play settings and any prize count. There is no universal 50% starting strength, fixed 15–30-second game time or setting that guarantees a win every N plays. Test the chosen prizes and chute repeatedly, then adjust only documented settings and record what changed. A prize sensor, if included, helps count dispensed prizes; the mainboard records plays separately.
Prize Ideas for Your Home Claw Machine
Try prizes whose shape, weight and packaging fit the actual claw and chute: appropriately sized plush, packaged small toys or collectibles, or securely wrapped items. Avoid assuming every Mini setup can handle a fixed 200g maximum or an 8–12cm plush range. Test reliable gripping and delivery for each new prize type; follow applicable food and age-suitability rules for snacks or children's items.
Frequently Asked Questions
How long does it take to build a tabletop claw machine?
Time depends on whether the cabinet and rails are already designed and made, available tools and your experience. There is no reliable universal cabinet-build or kit-installation time; leave room for testing and corrections.
Do I need woodworking skills to build a claw machine?
Woodworking helps if you are making a wood cabinet. A suitably engineered pre-made enclosure may reduce cutting, but it still needs correct mounting, stable support, rails, prize access and service openings.
Can I use a plastic storage box as the cabinet?
Do not assume a storage bin is structurally suitable. Verify it can securely support the moving gantry and rails, protect the components, provide stable mounting and allow safe prize retrieval. A purpose-built cabinet may be needed.
What power supply does the kit use?
Check the exact 25.7cm Mini edition's supplied or specified power supply and its board, motor and accessory ratings. Mini is a separate compatibility category; do not apply a universal 12V DC or 110V/220V assumption.
Can children use the claw machine safely?
Use a stable, enclosed build, supervise young children, keep fingers away from moving parts and the prize opening, and choose age-appropriate prizes. Low-voltage components alone do not make every home-built machine safe.
Can I use the machine commercially?
Consider the completed cabinet's durability, intended prizes, payment setup and local requirements. A 25.7cm Mini is not categorically limited to home use, and a larger gantry does not by itself guarantee suitability for a venue.
How do I get replacement parts?
Check arcade spare parts for compatible model, voltage, connector and pack quantity. Some parts are sold in packs, not individually.
Can I build a larger claw machine for my game room?
Yes, compare 53cm and 71cm kits against a suitable cabinet and matching rails. Their electrical and mechanical parts may differ from Mini; use the detailed DIY build guide and the chosen kit's instructions.
