Direct Answer
A wiring harness groups the wires and connectors that carry power and signals between a claw machine's board, controls, motors, payment devices, lights and sensors. In a DIY kit, it helps organize the installation, but it does not remove the need to check the exact board, power supply and connector diagram before power-on. A connector's shape or wire color alone does not prove its function or voltage.

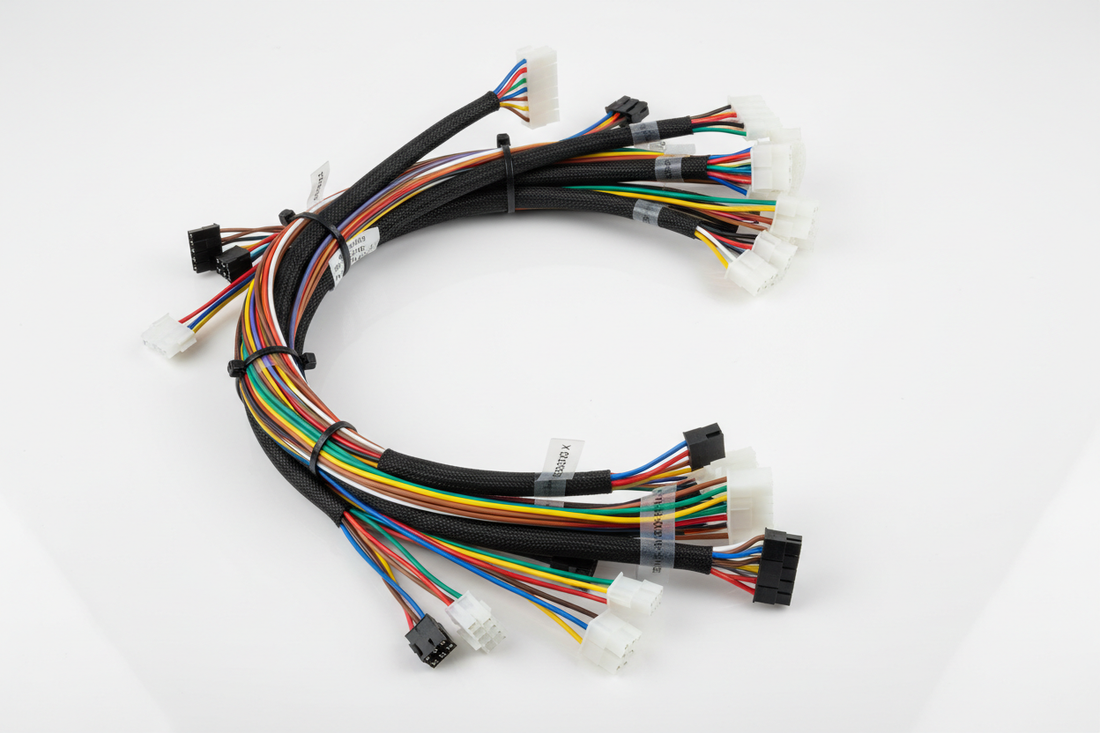

What Is a Wiring Harness?
A wiring harness (or cable harness) is an assembly of:
- Individual wires — carrying particular supply, return or signal circuits
- Color coding — helpful within a documented kit, but not a universal rule that red means 12V or another color always means a motor signal
- Connectors — plugs or terminals that need to match both the mating connector and its pinout; a physically fitting plug is not proof of electrical compatibility
- Protective sleeving — bundling and protecting wires where provided
- Labels or tags — identifying branches when supplied; verify against the edition's diagram
Some branches run through the mainboard; others may connect to the power supply, a driver or another module. Trace the actual kit diagram rather than assuming every branch originates at one board.
What Does the Wiring Harness Connect?
| Component | What to match in the diagram | What to check |
|---|---|---|
| X/Y/Z motors | Specified motor and driver connections for each axis | Motor rating, connector pinout and output for the exact model; some gantry motors use different voltages |
| Joystick and buttons | Control inputs and, where present, separate lamp feeds | Input wiring versus any 12V lamp supply |
| Coin acceptor | Power, signal and return connections | Supply rating, output type and board input configuration |
| Bill acceptor | Power and compatible payment input or interface | Device output type and edition-specific wiring; do not assume every board has a dedicated bill terminal |
| Prize sensor | Sensor supply and input, if included | Whether the particular kit includes it and its documented wiring |
| Limit switches | Switch inputs and common/return for the specific board | Pinout and which switch or axis is involved |
| LEDs and prize lights | Specified lighting feed or controller | Rated voltage and polarity from the actual part |
| Power supply and board | Documented input and outputs | Mainboard supply is generally 5V DC on Hiclawcrane systems; 12V commonly serves lit controls or prize lighting, and some gantry motors use 24V or 48V. Confirm the exact model. |
| Speaker | Audio output connection, if fitted | Connector and speaker specification |
How to Read a Claw Machine Wiring Diagram
Use the diagram supplied for the exact kit and board revision. If you do not have it, request the correct one before guessing connections.
- Identify the board and power supply: note each labeled input, output and rating.
- Trace each circuit: follow its diagram label and pinout from source to component, including returns and any separate driver.
- Use colors only as a cross-check: wire colors can differ between harness revisions.
- Compare connector shape and pin order: do not force a plug or assume two similar plugs are interchangeable.
- Check terminal labels: use the actual board markings, not a generic list of X+, LED+ or other terminals.
With power disconnected, continuity testing can help identify an unlabeled branch or an open wire. Disconnect sensitive modules as directed by the product instructions; continuity alone does not establish a circuit's voltage or whether it is safe to power.
Wiring Harness in a DIY Kit: Installation Checks
The exact sequence varies by edition. Before power-on, work through these checks against the supplied diagram:
- Identify the power supply's labeled outputs and the board's required supply; leave power disconnected while connecting.
- Identify X, Y and Z motor circuits and any separate drivers, matching ratings and connector pinouts.
- Match each limit switch to its documented input and common/return.
- Connect the joystick and buttons, distinguishing switch contacts from illuminated-control power.
- Match coin and optional bill-acceptor connections to their specified power and signal types.
- Connect any included prize sensor, lighting and speaker according to the edition's diagram.
- Check that connectors are seated, wire insulation is intact, and cables cannot be pulled into the gantry's moving path.
- Confirm cabinet grounding and mains-side work according to the product's instructions with qualified help when required; then follow the kit's initial power-on checks.
Common Wiring Harness Faults
| Symptom | Possible cause | First check |
|---|---|---|
| Motor moves the wrong way | Board setting, motor connection or control direction differs from the diagram | Compare the exact board settings, connector pinout and motor wiring before changing anything; do not blindly swap wires |
| Motor does not move | Loose connector, limit input, driver or supply issue | Check the correct connector, limit status and specified motor supply; test continuity with power disconnected if needed |
| Joystick input is not recognized | Loose plug or mismatched input pins | Compare the joystick contact and lamp pins to the board diagram |
| Coin acceptor does not start a play | Power, signal, coin configuration or board setting | Confirm device supply, signal type and board's coin settings for that model |
| Lights do not illuminate | Disconnected lead, failed lamp or incorrect supply | Check part rating, connector and measured supply; do not reverse polarity as a guess |
| Board powers up but nothing moves | Driver power, interlock/limit signal or harness branch | Compare actual measured outputs and status with the correct diagram; diagnose a blown fuse's cause before replacement |
| Intermittent fault during movement | Loose plug, strained cable or abrasion | Inspect cable routing and strain relief with power disconnected |
Extending or Replacing a Wiring Harness
A custom cabinet may need a different harness length. Before modifying a branch, identify its current draw, voltage, wire size, connector rating, route and the relevant kit instructions. An extension changes voltage drop and mechanical strain; there is no universal safe maximum length for every motor circuit.
- Match the original circuit's specification or use a replacement approved for that board and component; do not choose a smaller conductor solely for convenience.
- Match connector type and pinout. The same plug shell can be wired differently.
- Use properly insulated, strain-relieved connections appropriate for the circuit; do not leave bare twisted joints.
- Keep wires away from moving parts and sharp edges; label any changed branch.
Check the relevant pack size, ratings and kit compatibility before ordering from arcade spare parts. A JAMMA arcade harness is not automatically a replacement for a claw-machine kit harness.
Wire Gauge: Choose by the Actual Circuit
| Circuit | What determines conductor choice |
|---|---|
| Motor power (X/Y/Z) | Motor current, voltage, run length, connector rating and allowable voltage drop |
| LEDs and illuminated controls | Actual lighting load, voltage, length and connector rating |
| Joystick, sensors and payment signals | Device/interface specification, mechanical strength, length and routing |
| Power supply output to board or driver | Output current, protection, connector rating, run length and the kit's wiring specification |
Do not substitute a generic AWG table for the exact harness specification. If the documentation does not state a suitable size for an extension, ask the kit supplier or a qualified technician to size and protect the circuit.
Frequently Asked Questions
Does the DIY kit come with a complete wiring harness?
Check the selected kit's included-parts list. Hiclawcrane DIY kits include wiring for their listed components, but a kit harness does not include cabinet-specific wiring or rails for every custom build. Use the diagram for the exact edition.
Can I extend the harness for a taller or wider cabinet?
Possibly, after checking the circuit current, voltage drop, wire and connector ratings, routing and the kit's instructions. Do not apply a universal two-meter rule or assume soldering an extension is always sufficient.
What do I do if a connector does not fit?
Do not force it. Check the exact wiring diagram and pinout; visually similar connectors can serve different functions or voltages.
How do I find a broken wire inside the harness sleeving?
With power disconnected, inspect the cable and use continuity testing on an isolated suspect wire according to the kit instructions. A missing connection can indicate a broken conductor or connector; replace the correct branch or harness after confirming the fault.
What is the difference between a wiring harness and a PCB?
The harness is the cable assembly carrying connections. The PCB or mainboard processes control inputs and provides specified outputs; it may work with separate drivers or power circuits. See How Claw Machine Mainboards Work.
