How X/Y/Z Claw Mechanisms Work in a Claw Machine
Direct Answer
A claw machine uses three independent mechanical axes — X (left-right), Y (front-back), and Z (up-down) — to position and lower the claw unit inside the cabinet. Each axis has its own motor, drive system, and rail assembly. The X and Y axes position the claw horizontally over the prize field; the Z axis lowers and raises the claw to grab. Understanding each axis mechanism helps operators diagnose movement problems and perform targeted repairs.
X-Axis Mechanism — Left and Right Movement

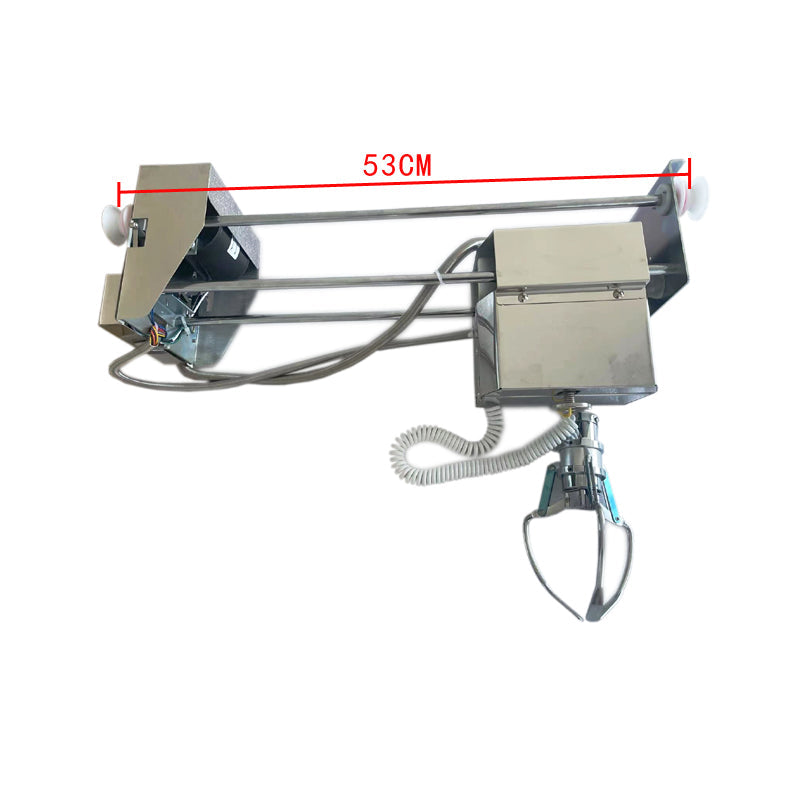

The X-axis moves the claw horizontally across the width of the cabinet. A DC gear motor drives a timing belt or rack-and-pinion gear along the X-axis rail. The carriage rides on linear guide rails or round steel rods with low-friction bearings or bushings. Limit switches at each end define the left and right boundaries and the home position.
- Drive type: Timing belt (most common) or rack-and-pinion
- Motor type: 12V or 24V DC gear motor
- Rail type: Round steel rod or linear guide rail
- Bearing type: Plastic bushing or ball bearing carriage block
- Home position: Typically left side (triggered by left limit switch on power-up)
Y-Axis Mechanism — Front and Back Movement
The Y-axis moves the claw along the depth of the cabinet, from front to back. It operates on the same principle as the X-axis but is mounted perpendicular to it. The Y-axis carries the Z-axis assembly and claw unit. In most cabinet designs, the Y-axis rail spans the full depth of the prize field.
- Drive type: Timing belt or rack-and-pinion
- Motor type: 12V or 24V DC gear motor
- Rail type: Round steel rod or extruded aluminum rail
- Home position: Typically front position (triggered by front limit switch on power-up)
Z-Axis Mechanism — Up and Down Movement
The Z-axis lowers and raises the claw unit vertically into the prize field. Unlike the X and Y axes, the Z-axis typically uses a spool and cable system or a lead screw to convert motor rotation into vertical movement. The claw unit hangs from the Z-axis cable or rod and descends when the drop command is triggered.
- Drive type: Cable spool (most common), lead screw, or rack-and-pinion
- Motor type: 12V or 24V DC gear motor with higher torque rating than X/Y motors
- Descent depth: Controlled by mainboard Z-depth parameter (timed or encoder-based)
- Return speed: Usually faster than descent speed to minimize play cycle time
- Home position: Full up position (triggered by upper limit switch)
Drive System Comparison: Belt vs Rack-and-Pinion
- Timing belt — Quieter, lower cost, easier to replace; can slip if worn or loose; requires periodic tension adjustment
- Rack-and-pinion — More precise, no slip, longer lifespan; higher cost; requires lubrication of gear teeth
How All Three Axes Work Together
During a play cycle, the X and Y axes move simultaneously or sequentially to position the claw over the player's target. Once the player triggers the drop, the X and Y motors stop and lock position while the Z motor activates to lower the claw. After the grab sequence completes, the Z motor raises the claw, then X and Y drive the carriage back to the drop chute position where the claw releases the prize.
Common Axis Mechanism Problems
- Axis not moving — Broken belt, stripped gear, disconnected motor cable, or blown motor
- Axis moving only one direction — Limit switch stuck or shorted; mainboard output fault on one direction
- Jerky or uneven movement — Worn bearings, bent rail, loose belt tension, or insufficient motor voltage
- Z-axis not reaching prize field — Z-depth parameter set too shallow; recalibrate in service menu
- Carriage drifting after stop — Belt slippage or motor brake not engaging
Frequently Asked Questions
Q: Can X and Y axes move at the same time?
A: Yes. Most claw machines allow simultaneous X and Y movement so the player can move the claw diagonally. The mainboard drives both motors independently.
Q: How do I adjust Z-axis drop depth?
A: Enter the service menu and find the Z-depth or drop depth parameter. Increase the value to lower the claw deeper; decrease to raise the stop point. Always test after adjustment.
Q: What causes a timing belt to break on the X or Y axis?
A: Common causes are age-related wear, improper tension, and debris caught in the belt path. Inspect belts every 6–12 months on high-use machines.
Q: Are X and Y axis motors interchangeable?
A: Often yes, if they share the same voltage, RPM, and shaft size. Always verify specifications before substituting.
